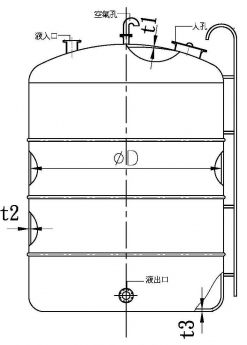

立式 FRP 儲槽規格

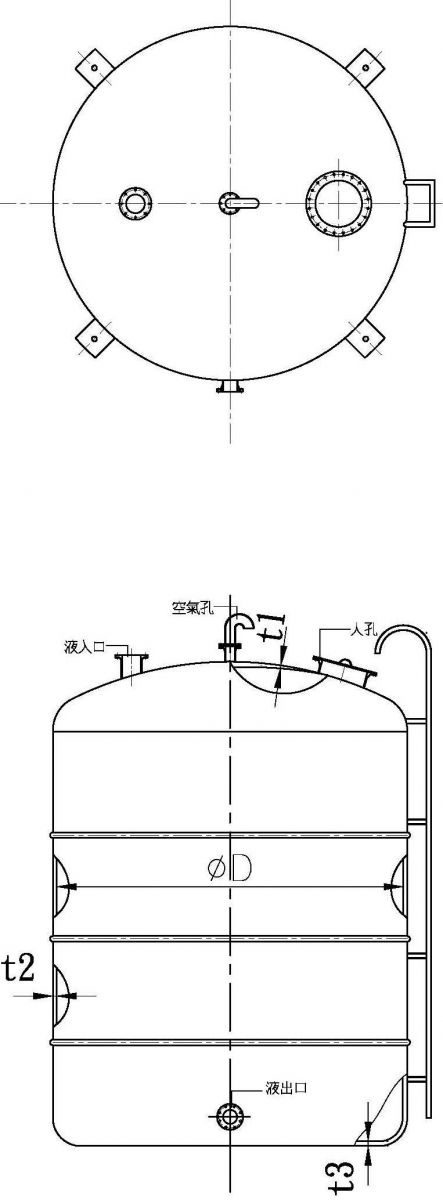

-111-2.jpg) |
 |
直徑 (D) |
槽高 (H) |
厚度 | ||
| t1 | t2 | t3 | ||||
|
1 |
1000 | 1300 | 5 | 5 | 5 | |
|
1.5 |
1200 | 1350 | 5 | 5 | 5 | |
|
2 |
1200 | 1800 | 5 | 5 | 5 | |
|
3 |
1500 | 1700 | 5 | 5 | 5 | |
|
5 |
2000 | 1600 | 5 | 5 | 6 | |
|
6 |
2000 | 1950 | 5 | 6 | 7 | |
|
8 |
2000 | 2550 | 5 | 6 | 8 | |
|
10 |
2000 | 3200 | 6 | 7 | 8 | |
|
15 |
2500 | 3100 | 6 | 7 | 8 | |
|
20 |
2500 | 4100 | 6 | 8 | 9 | |
|
30 |
3000 | 4250 | 7 | 9 | 10 | |
|
40 |
3000 | 5700 | 8 | 10 | 12 | |
|
50 |
3800 | 4450 | 8 | 11 | 13 | |
|
60 |
3800 | 5300 | 8 | 12 | 14 | |
|
75 |
3800 | 6650 | 9 | 12 | 15 | |
|
100 |
3800 | 8850 | 9 | 13 | 15 | |
|
120 |
3800 | 10600 | 10 | 13 | 15 | |
